In this article, our marketing specialist Subana Akhmedova takes a look at Roto NX | C and explains why window fabricators should consider adding this concealed system to their portfolio.
Minimalist aesthetics are continuing to be popular in building design. We can expect windows with concealed hinges to take a greater share of the market over the years ahead.
Roto helps you to be ahead of competitors with Roto NX | C, the most refined concealed hardware system we have yet produced.
As a window manufacturer, you are almost certainly going to be interested in ways to simplify your logistics and production chain. You also want your windows to have maximum functionality and features that provide added value, increasing the appeal to customers.
Roto NX | C, is a concealed tilt & turn system that covers all these requirements, supporting you not only in design, but across logistics, fabrication and sales.
Simple changeover
If you are looking at adopting a new hardware system, you will want it to integrate into your existing production processes in the most straightforward way without having to make major changes. Our engineers developed Roto NX | C with all of this in mind.
Roto NX | C is based on the proven Roto NX platform and shares many common parts. If you are currently using Roto NX then this minimises the number of different components, you need to stock and simplifies ordering processes.
Reliable installation
In your production process, you require consistency and reliability. Roto NX | C is designed to allow straightforward installation, helping to reduce assembly time and minimise errors. The 13 mm hardware axis provides compatibility with a wide range of PVC and timber profile systems, giving you flexibility without overcomplicating fabrication.
Comfort ventilation
For accessibility, Roto NX | C supports two comfort ventilation options. In both cases, the handle is mounted on the bottom horizontal part of the sash. This positioning and the method of control means they can be operated by anyone, including wheelchair users. The two versions are tilt-only and turn-only.
● Tilt-only comfort ventilation for sashes up to 80 kg
● Turn-only comfort ventilation for sashes up to 100 kg
Both systems have controlled opening, with the sash movement powered by the gearing mechanism when you turn the handle. The comfort handle is designed to need only minimal effort to operate it.
When the handle is turned fully, the sash is open to a gap of 80 mm. This allows safe ventilation.
For cleaning or full access, both versions allow the sash to turn open by 90 degrees. This is done by releasing the anti-unlocking mechanism in the comfort arrestable ventilation stay.
Everyday use is convenient, intuitive and safe. Access to fully open mode for cleaning and maintenance is still possible, but it can’t happen by accident.
Roto E-Tec Drive – automated tilt
For projects requiring enhanced convenience, the Roto E-Tec Drive is a quiet-operating electric tilt drive that you can integrate with Roto NX | C.
● The system can be activated via radio-controlled button, remote control, or smart home system.
● Tilt depth is adjustable to suit specific requirements.
● E-Tec Drive is compatible with all frame materials and supports sashes up to 100 kg.
With this combination you can provide accessible ventilation, all under the Roto brand.
Supporting triple-sash solutions

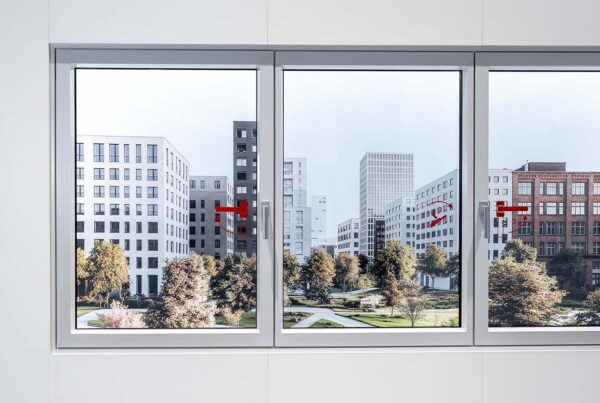

You can make double or triple-sash windows with concealed hinges and no fixed mullions using Roto NX | C in conjunction with the Lever-operated Espagnolette Plus, which locks a sash closed and allows users to open it with a simple lever.
● Concealed components create a flush look when closed.
● Two sashes can open fully for a generous opening area.
These configurations allow you to deliver premium design options that are in line with modern architectural trends, without compromising on functionality.
Summary
From the point of view of your end users, using Roto NX | C means you can give them:
● Premium aesthetics with concealed hinges
● Safe, controlled ventilation
● Effortless operation with ergonomic comfort handles
● Flexible automation options via integration with Roto E-Tec Drive
This should give you more talking points to help sell your windows, and you will be able to cover all of these requirements easily if customers ask about them.
See Roto NX | C in action
The best way to understand how good the system is and experience the comfort options is to try Roto NX | C for yourself. Your Roto representative is able to arrange a demonstration for you. Please get in touch.
